A.D International Hardened Steel Multi-Use Vee Block & Clamp Set, Precision Ground

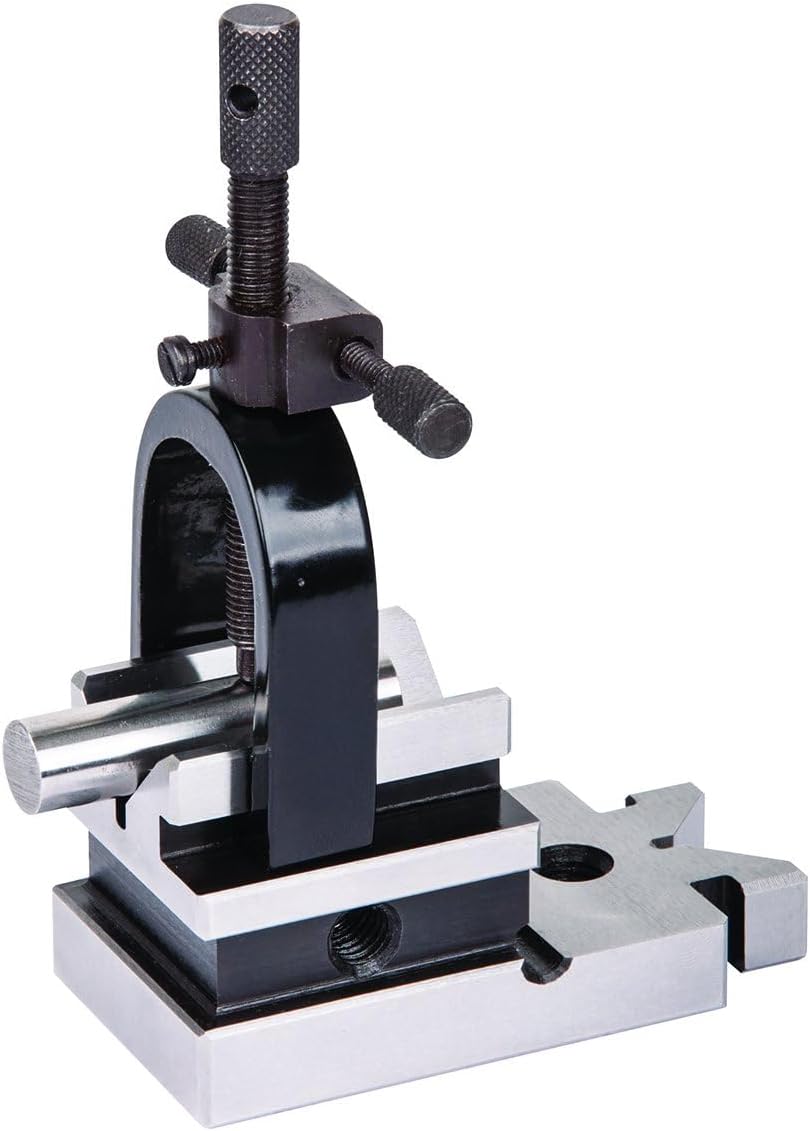

The A.D. International 52-475-050-0 All-Angle V-Block and Clamp Set is designed to provide exceptional versatility and precision, with a 1.312" holding capacity. This high-quality V-block features four 3/8"-16 tapped holes: two located at the bottom and one on each side for non-clamping angles, ensuring flexibility in various setups. The V-block’s sides are parallel, and the V-groove is centered and precisely ground to a tolerance of .0003" for accurate alignment. A central hole is included, allowing for easy pin removal or drilling when needed. Constructed from hardened, precision-ground tool steel, this V-block guarantees durability and longevity in demanding applications. Ideal for use in grinding, milling, and drilling operations, the A.D. International All-Angle V-block and clamp set ensures reliable performance.

• ✅ Angle Clamp Design: Features parallel sides with a centrally ground V-groove, and includes a central hole for easy pin removal or drilling.
• ✅ Versatile Machinist Tool: Equipped with four 3/8"-16 tapped holes (two at the bottom, one on each side), designed for non-clamping angle setups—ideal for grinding, milling, or drilling.
• ✅ Durable Construction: Built from hardened, precision-ground tool steel for long-lasting performance in demanding machining applications.
• ✅ Dimensions: The V-clamp measures 3-5/8" in length, 1-7/8" in width, and 1-7/8" in height (including clamp) with a holding capacity of 1-5/16".
• ✅ High Precision: The sides are perfectly parallel, and the V-groove is centrally aligned and ground to a tolerance of .0003" for exceptional accuracy.
