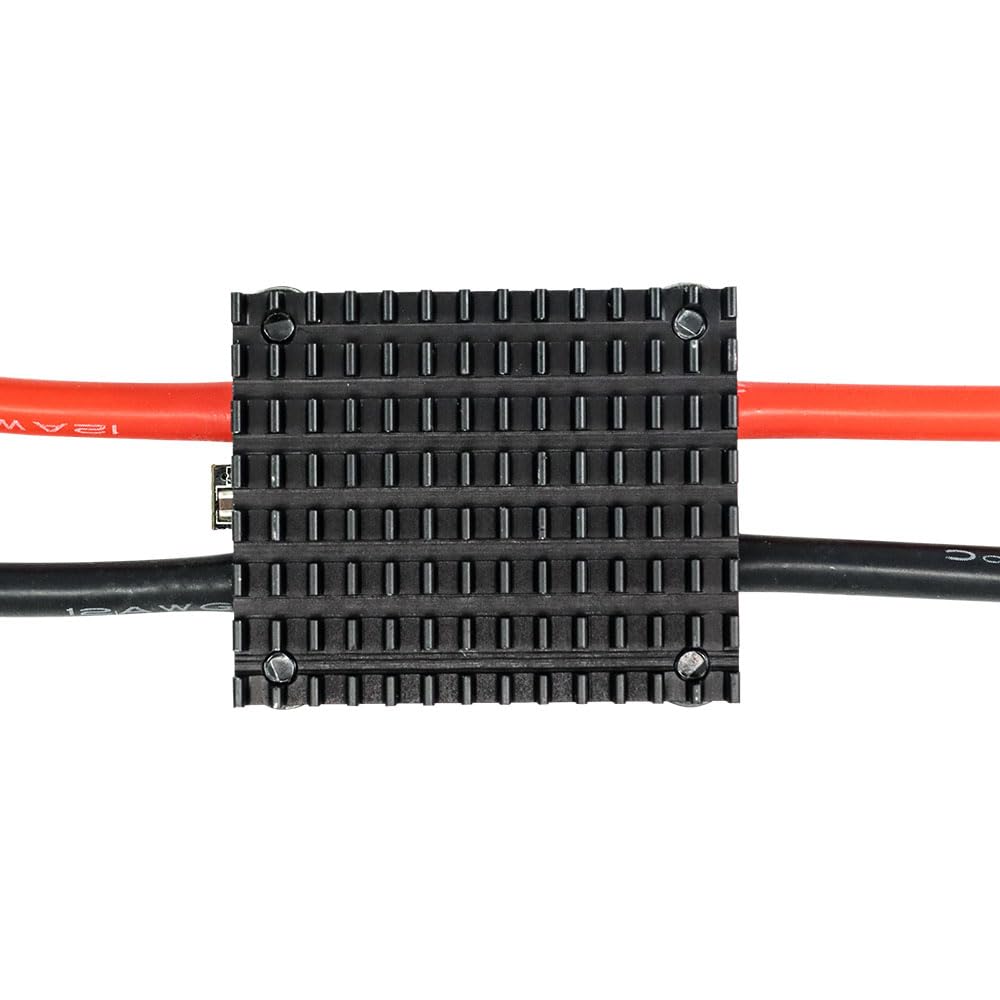

Flipsky Antispark Switch Pro with Aluminum PCB V3.0 200A for Electric Skateboard/EBike/Scooter/Robots(with Heatsink)
4.3 (105 items)
Limited Time SaleUS$23.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214455169 | Release Date | 2026/04/12 | List Price | US$16.00 | Model Number | 214455169 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specs: V3.0 Mosfets:HYG015N10NS1TA LED button diameter: 16mm Voltage range:3S-14S (12V-60V) Max current:200A(It is better to increase bigger heat sink) Continuous current:100A Burst current 1200A(theoretical current) PCB thickness: 6 layer*3oz copper=18oz copper Pro V3.0 Dimensions(with heatsink and heat shrink): 42.2mm*33mm*26.6mm(12AWG Wire) With Aluminum PCB/case V3.0 Dimensions:72mm*37mm*16.2mm(8AWG Wire) Reminder : the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.Make sure the switch is off before applying power.
- High Side Switching : Much safer to use with multiple ESCs and other devices.
- Roll-to-start. Has 12 second blanking timer after turn off. Can still be turned on by switch during this period.
- Auto-turn-off. Will turn off automatically after 20 minutes. The output voltage must vary by at least 500mV within any three second interval to reset the turn-off timer.
- Pro V3.0 Dimensions(with heatsink and heat shrink): 42.2mm*33mm*26.6mm(12AWG Wire)
- Voltage range:3S-14S (12V-60V) Max current:200A(It is better to increase bigger heat sink) Continuous current:100A Burst current 1200A(theoretical current)
- Top Service: If there are any question or need help , just feel free contact us , we will always here help you out within 24 hours.
| UPC | 768481809290 |
|---|---|
| Model | V75 SERIES |
| Wattage | 12000 watts |
| Terminal | Through Hole |
| Brand Name | FLIPSKY |
| Switch Type | MOSFET |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | Flipsky |
| Actuator Type | MOSFET |
| Material Type | Aluminum |
| Mounting Type | Surface Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 200 Amps |
| Item Type Name | Flipsky Antispark Switch Pro With Aluminum PCB V3.0 200A for Electric Skateboard /EBike /Scooter/Robots |
| Operation Mode | automatic |
| Item Dimensions | 1.57 x 1.3 x 1.05 inches |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Operating Voltage | 3 Volts |
| Specification Met | Ip65 |
| Included Components | Antispark Switch Pro With Aluminum PCB V3.0 280A |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP65 |
