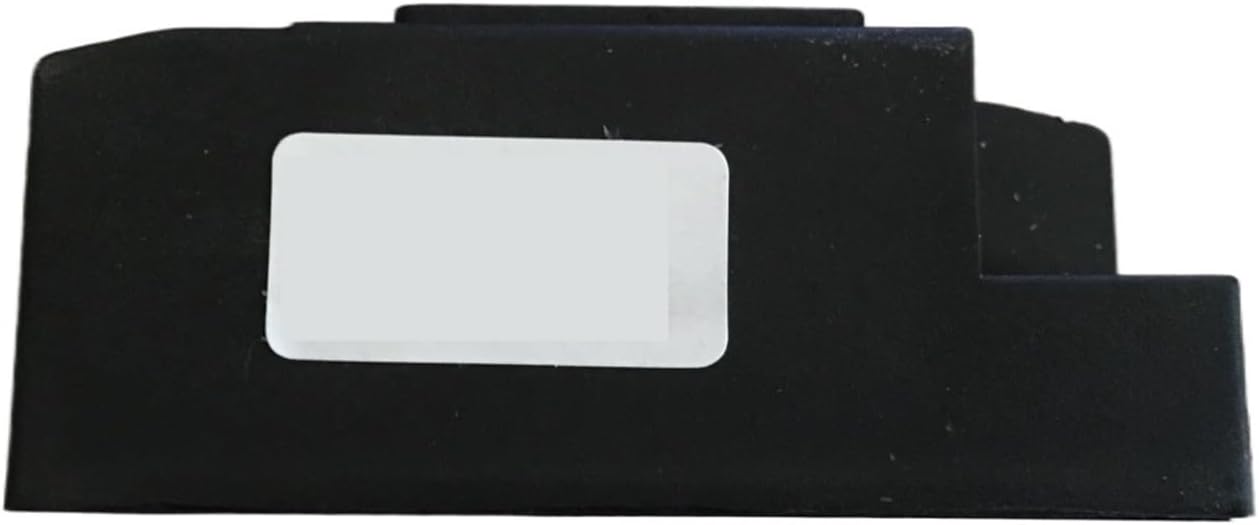

for Compressor Protection 071-0649-01 Module OUT69 SC2/INT69 SC2 Motor Protector 071-0649-00(24vac)

Electromechanical RelaysThe OUT69 SC2 is an intelligent motor protector. It is used to detect the winding and exhaust temperature of compressors such as Copeland to prevent the temperature from being too high and causing the compressor to burn out.Copeland Part-No. 071-0649-00 115-240vCopeland Part-No. 071-0649-01 24vacFunctional descriptionUsed in conjunction with PTC temperature sensors for a variety of motors that require protection.Up to 9 PTC sensors according to DIN 44081/82 can be connected, and sensors with different response temperatures can be used. A motor protector can monitor multiple tested areas. If the resistance of the PTC in one or more areas exceeds the resistance of the respective response to the high-resistance state, the motor protector relay releases the action and closes the contactor for protection purposes. When the temperature drops below 3K (total resistance is about 2.75K) and the timing has reached 30min, the protection module is reset.The main parametersVoltage supply: AC50Hz, 115-230V; AC60Hz 120-240V; -15%...+10% 3VAAmbient temperature: -30-70 ° CMeasuring circuit- Sensor type: PTC (DIN44081/082)- Number of sensors: 1-9<;1.8 K-R action / R reset: 4.50 K ± 10% / 2.75 K ± 10%;- After the resistance is reset, add a delay time: 30min ± 20%, so that the motor is fully cooled.- Measurement voltage 2.5V (acc.to IEC 60034-1)Output relay: max AC 240V, max 2.5A, C300; min AC/DC>24V, >20mAService life: about 1 million timesProtection level: IP00Connection: screwMaterial: PA66Installation: direct fixationSize: 76.5*81.5*34.5Ordering informationOUT69 SC2 (115-240VAC): 16G08 SC2 00Hign-concerned Chemical : nonePower Source : AC,ACTheory : Voltage relay,Voltage relayis_customized : Yes,YesProtect Feature : SealedContact Load : High Power,High PowerUsage : General Purpose,Genera
