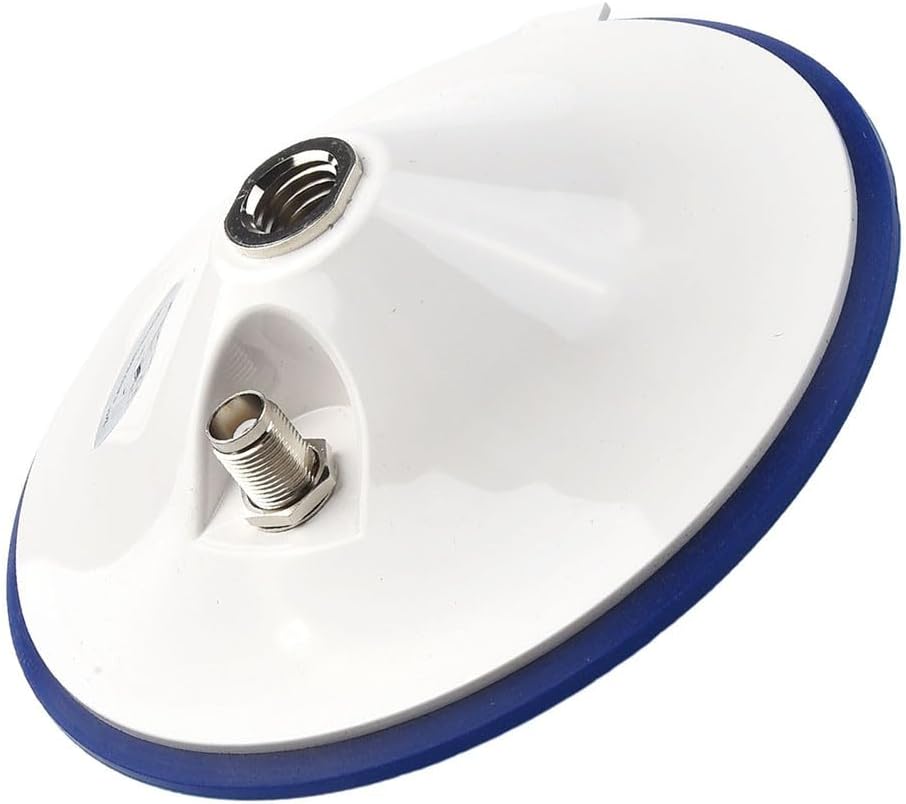

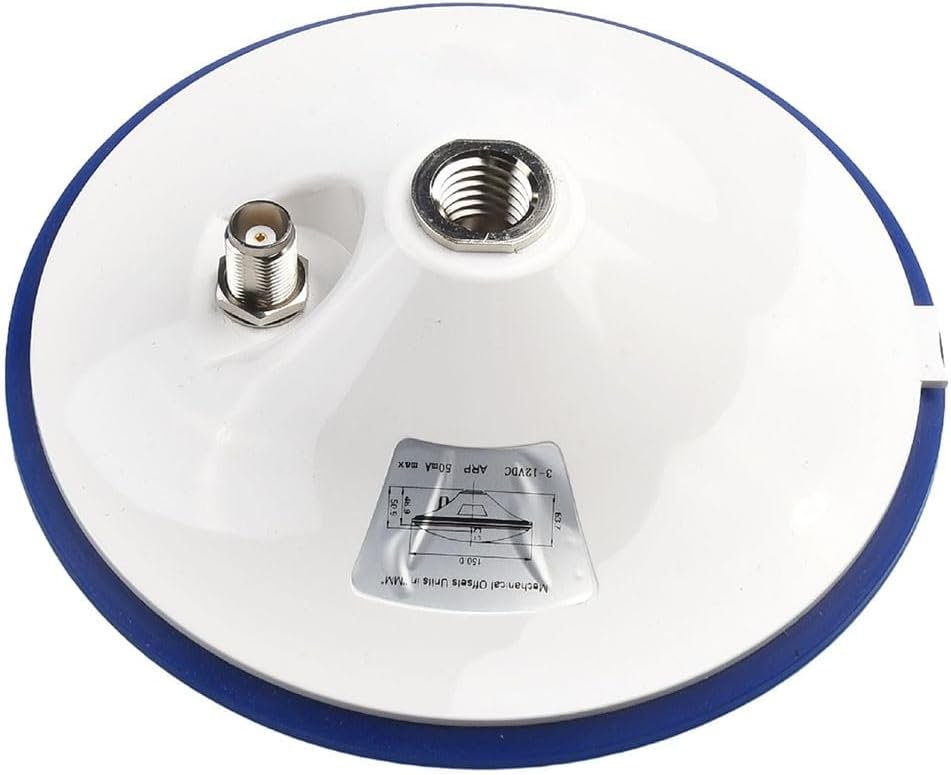

GNSS Multiband Survey Antenna for GPS for BeiDou for Galileo with TNC Port Waterproof

Features:* A high-precision GNSS antenna that supports the four major global navigation satellite systems of GPS, GLONASS, BDS and for Galileo, and supports GPSL1, L2, GLONASS, G1, G2, Beidou B1, B2, B3 and for Galileo E1, E5b. The antenna has the characteristics of high gain, good gain at low elevation angles, large circular polarization angle, and stable phase center. It is suitable for high-precision mapping and is widely used in automated agriculture, geodesy, road construction, surveying, dock container operations and other occasions. The new GO100 adopts high-strength ABS shell and waterproof design, which can greatly extend the service life of the antenna.* The antenna part adopts a multi-feed point design to for ensure that the phase center coincides with the geometric center, minimizing the measurement error of the antenna;* The antenna unit has high gain, wide beam pattern, good signal reception at low elevation angles, and can still search for satellites normally under strong obstruction;* High and low temperature resistance, waterproof and dustproof, and anti-obstruction design provide protection for the antenna to work long-term in the field.Specifications:Part name: GNSS antennaMaterial: engineering plastic + anti-UvColor: as shown in the figureWorking frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 for GalileoE1/E5bPolarization type: RHCPImpedance: 50ΩHorizontal coverage angle: 360°Output standing wave ratio: ≤1.5Antenna gain: ≤3dBPhase center error: ≤2mmLow noise specifications；For LNA gain: 40±2dBNoise figure: ≤1.5dBOutput standing wave ratio: ≤1.5Working voltage: +3V~+15VWorking current: ≤45mAInterface: TNC-KAntenna size (mm): Ф150mm×63.7mmWeight (g): 380gWorking environment；Working temperature (℃): -40℃ ~+70℃Storage temperature (℃): -55℃ ~+85℃Waterproof rating: IPX67Package contents:1 x GNSS antenna

• Multi-band Support: Advanced GNSS antenna compatible with GPS L1/L2, BeiDou B1/B2/B3, GLONASS G1/G2, and for Galileo E1/E5b frequencies, offering comprehensive satellite coverage for high-precision mapping, automated agriculture, geodesy, road construction, and professional surveying applications.
• High Precisioned Performance: Engineered with multi-feed point design to insure phase center coincides with geometric center, minimizing measurement errors to ≤2mm while maintaining stable phase center characteristics and superior gain at low elevation angles for reliable positioning data.
• Professional-grade Construction: Featuring high-strength ABS shell with IPX67 waterproof rating, this antenna withstands harsh field conditions from -40℃ to +70℃, making it a LONG LASTING solution for continuous outdoor operation in surveying, dock container operations, and agriculture.
• Technical Specifications: Delivers exceptional performance with 360° horizontal coverage, RHCP polarization, ≤3dB antenna gain, 40±2dB gain, and low noise figure ≤1.5dB, all while operating on 3V-15V DC with current consumption ≤45mA through a TNC-K interface.
• Complete Replacement Solution: Direct replacement for AG15, AG25, and AG35 antennas with the same superior functionality in a compact yet powerful Φ150mm×63.7mm design weighing just 380g, providing excellent signal reception even under challenging obstructed conditions.
